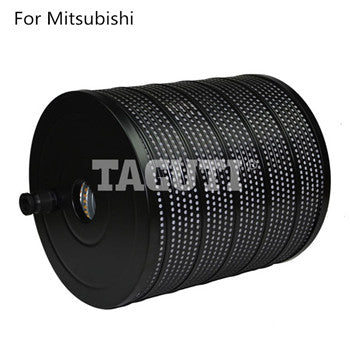

S642D854P17,S642D854P11,54203 Wire cut EDM filter is adopted with specialized German filter papers for EDM processing with high filtering accuracy, large water flow, high filter area and long service life, suitable for both low speed and medium speed EDM cutting.

◆ TAGUTI Code: YT-3033-59

◆ Reference Number: 04.01.455,S642D854P17,S642D854P11,54203

◆ Dimensions: Φ300*Φ59*330mm

◆ Connection system: Φ32mm side nipple

◆ Flow direction: Dual flow

◆ Filter fineness: 5 - 7µm

◆ Filter medium: German H&V paper

◆ Pleats way: Double bellow

◆ Net Weight: 5.30kg

◆ Recommended Max Pressure: 198kpa (2.0kgf/cm²)

◆ Instant Limit Working Pressure: 296kpa (3.0kgf/cm²)

◆ Applicable Machine For Mitsubishi: Mitsubishi EA12-D,EA12-V,EA28-V,EA8,EA8-M, EX22, EX30, EX8

* Please contact customer service for Filter shipping costs, otherwise the payment will be invalid.
